Modern design - future-oriented technology - impressive appearance

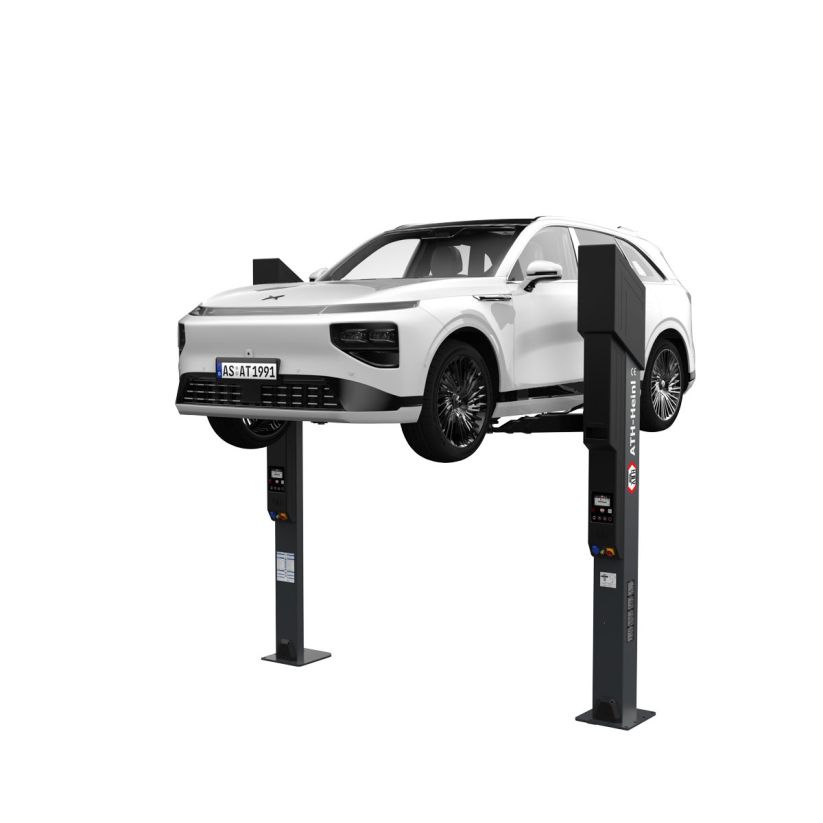

Electromechanical 2-post lift with space-saving “triangular columns” and spindle drive

Two independent columns are controlled wirelessly via industrial radio, without any cross connection, allowing flexible installation width

Extremely durable

ATH Supreme Lift® concept

1. ATH HeartBeat® PLC-controlled synchronization of two independent columns

2. One electric motor, control unit and energy set per column

3. Synchronization control with patented double travel-distance measurement for maximum safety

4. Service-friendly replacement of the load nuts possible while the column remains standing

ATH Supreme Safety System

1. Low-wear plastic load nut

2. Solid safety nut

3. Wear indicator

4. Mechanical nut-break safety unit

5. MicroAnts monitoring of all electronic components

Lift columns can be installed with variable width – no connection required

Operation possible from each column

Energy set (230 V / compressed air / USB) on both columns

Safety Control: Electronic components monitored by electromagnetic MicroAnts

Multifunctional vehicle support via 3-part lifting arms and double-telescopic lifting pads, optionally with double-jointed arm at the rear

Qualitative upgrade for every workshop thanks to high-quality, elegant design and covered components
