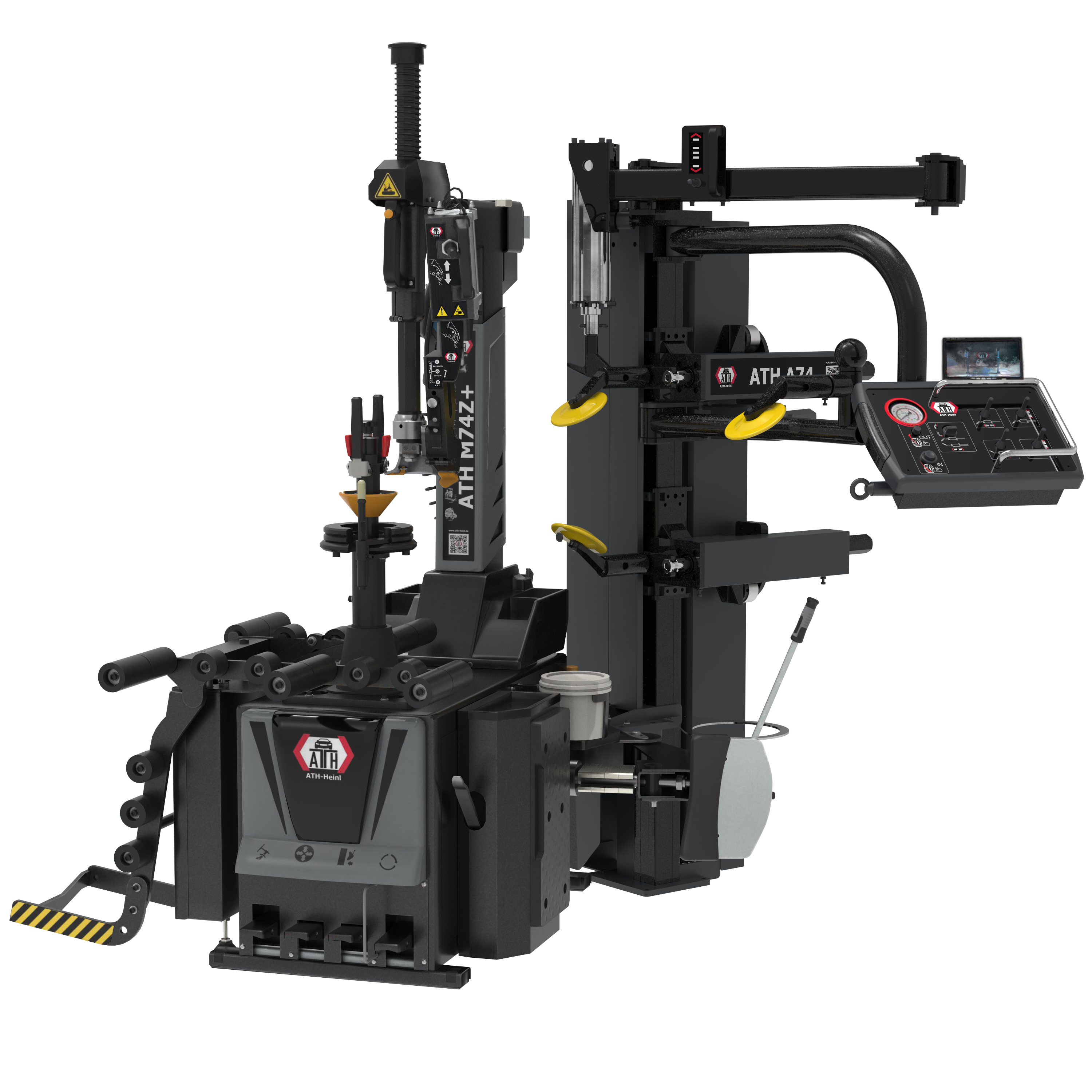

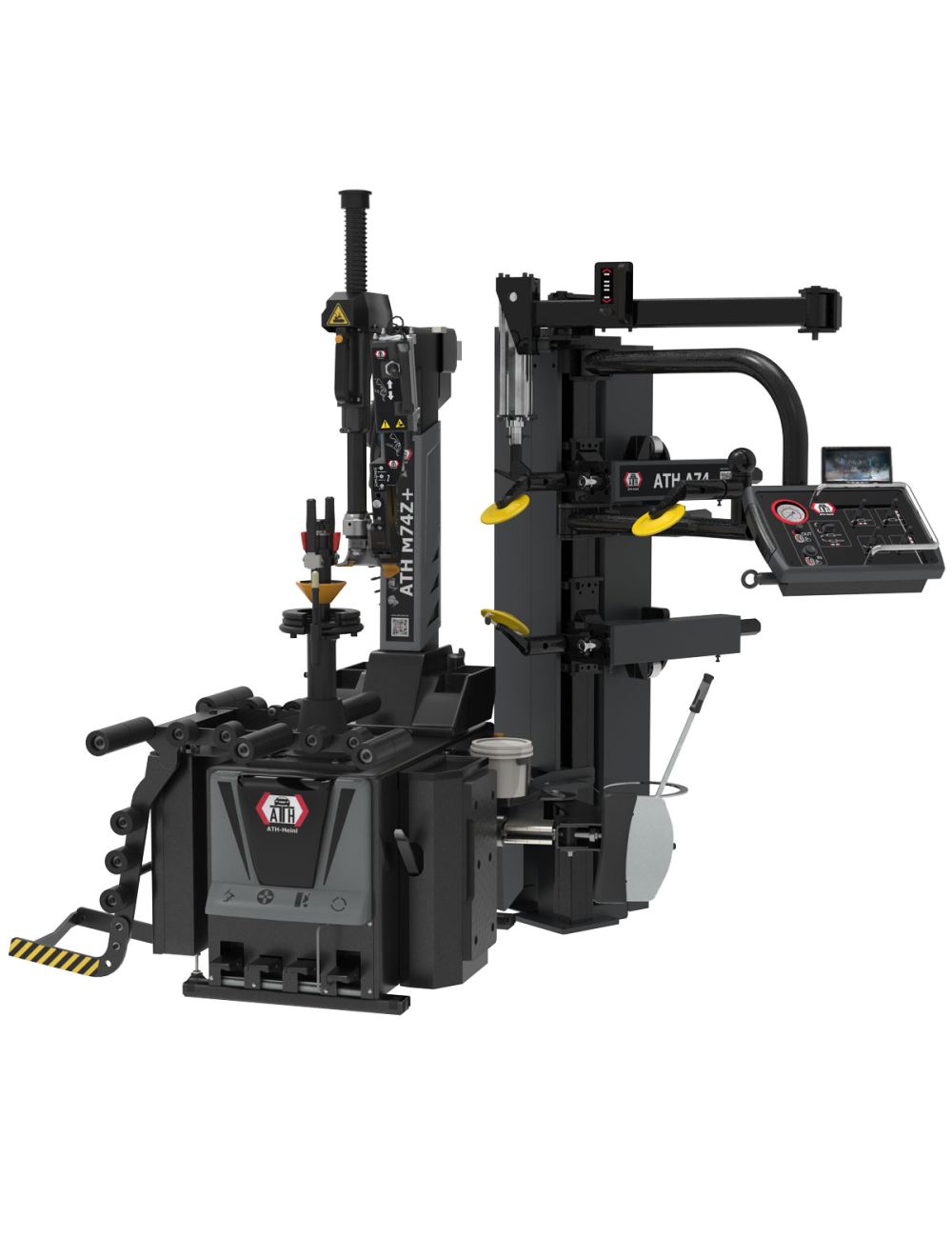

ATH M74Z PLUS
The ATH M74Z Plus is the modern tire changer for maximum efficiency. The new A74 assist arm with additional bead-breaking function makes work easier. The integrated camera in the assist arm displays the wheel underside directly on the control panel for full control. The height-adjustable center hole clamping with flange and quick-lock nut ensures precise mounting. Perfect for workshops that value speed and convenience.
7 558,82 €
plus bez podatków, transportu
9 070,58 €
Availability:
In stock
SKU
151064
- Rear swivel with pneumatic mounting head clamping including automatic vertical and horizontal rim removal
- Control via ergonomically arranged foot pedals
- Including pneumatic controlled auxiliary assembly arm for effortless and damage-free assembly of low-profile, UHP and run-flat tires
- Height-adjustable center hole mounting with use of a clamping flange and quick-release nut
- Lateral extractor with double-acting aluminium cylinder and anti-jamming system
- Including wheel lift, quick release tool, pneumatic assembly tool and WDK kit
| Zakres mocowania | 12 - 26 " |
|---|---|
| Szerokość felgi | 4 – 13 " |
| Max. średnica koła | 1.050 mm |
| Dopływ sprężonego powietrza | 10 bar |
| Zakres pracy odbijacza | 83 – 350 mm |
| Siła odbijacza | 2.500 kg |
| Prędkości montażowe | 6 and 12 U/min |
| Moc napędowa | 0,75 / 0,90 kW |
| Napięcie pracy | 3x 400V / C16A |
| Poziom hałasu | 70 dB(A) |
pobierz ulotkę produktu
