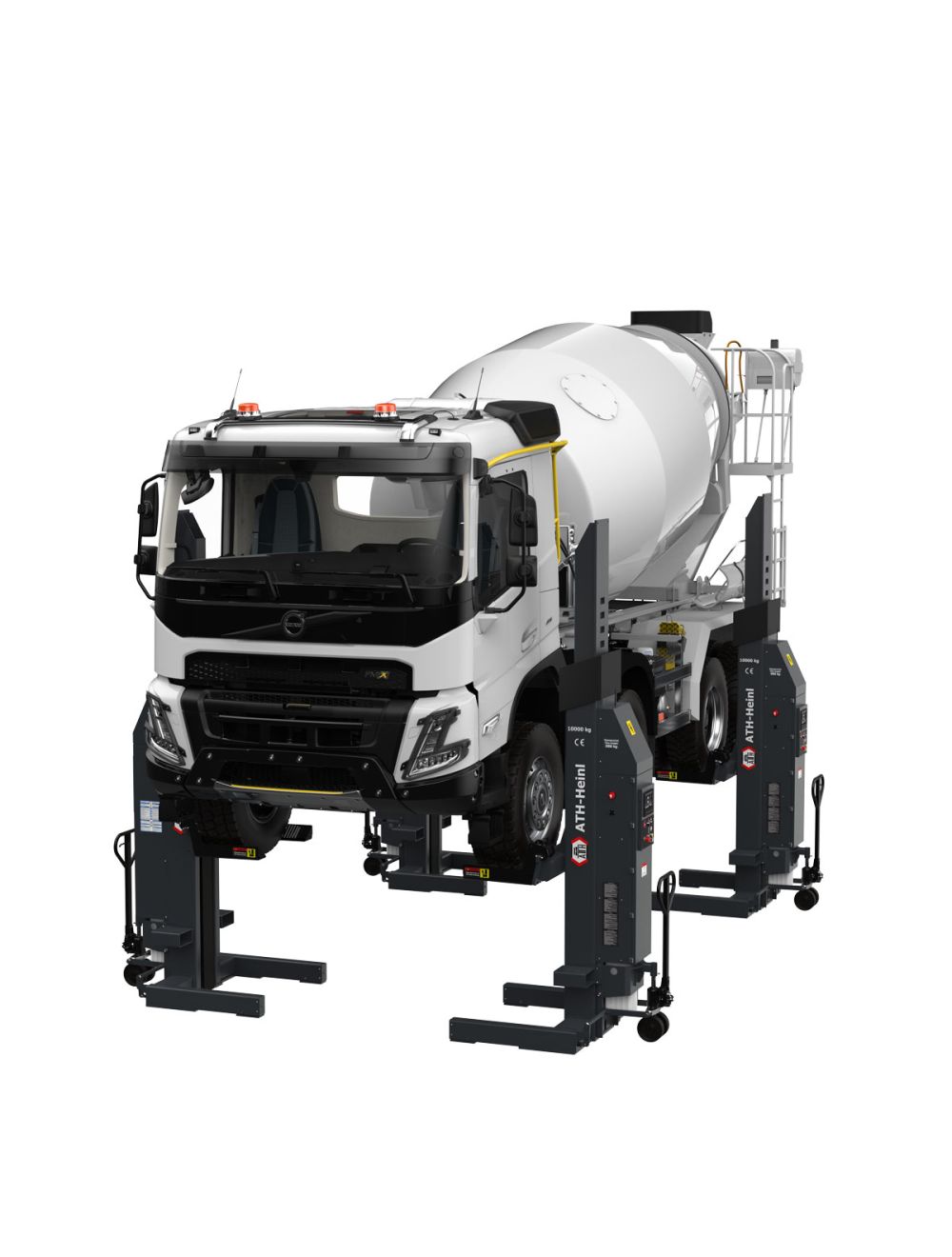

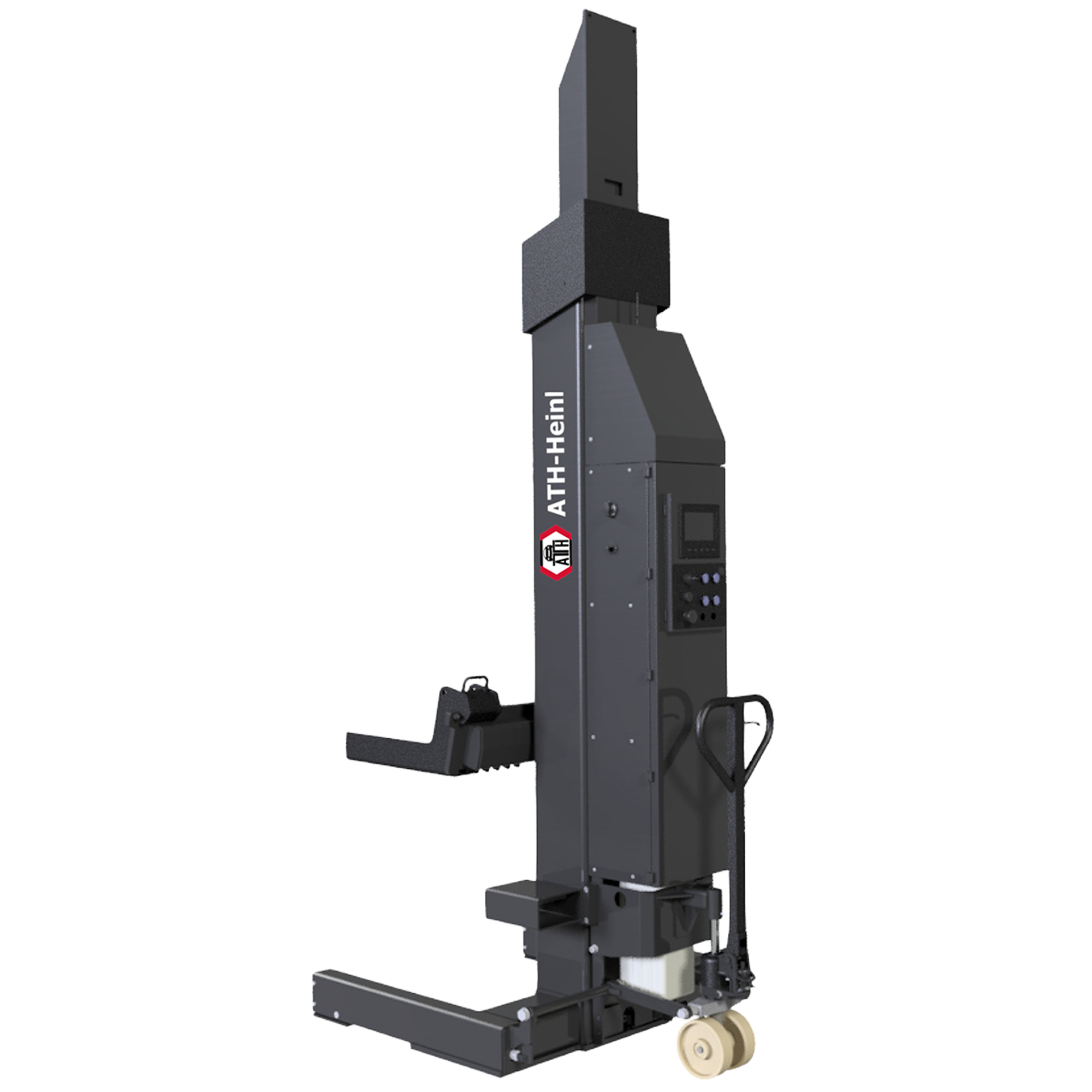

ATH RG®10-4 WB
4-column set with master control – expandable up to 16 columns
27 726,89 €
plus bez podatków, transportu
33 272,27 €
Availability:
In stock
SKU
710071
- Electro-hydraulic wheel gripper system with battery operation and wireless control
- Control unit including unit cover on each column for flexible use
- Master unit controls all operating information on each column and an extension up to 16 columns
- Integrated quick charger per column, enables charging during use.
- Mobile kit and forklift attachment on the columns enable a faster change of position
- Safety Control: hydraulic shut-off valve, electronic synchronization monitoring and electromagnetic safety locks
- Safety Lock: ability to lock the load on to the safety mechanism
- Multifunctional mounting via variable wheel fork with individual setting options
| Udźwig | 10.000 kg |
|---|---|
| Wysokość podnoszenia | 1.850 mm |
| Wysokość kolumny | 2.650 mm |
| Szerokość kolumny | 1.145 mm |
| Moc napędowa | 2,2 kW |
| Podnoszenie/obniżanie | 65s / 55s |
| Napięcie pracy | DC 24V |
| Komunikacja w kolumnie | wireless |
| Fundament | min. C20/25 Dicke: 200 mm |
