ATH W®44 P
ATH W®44 P Plus

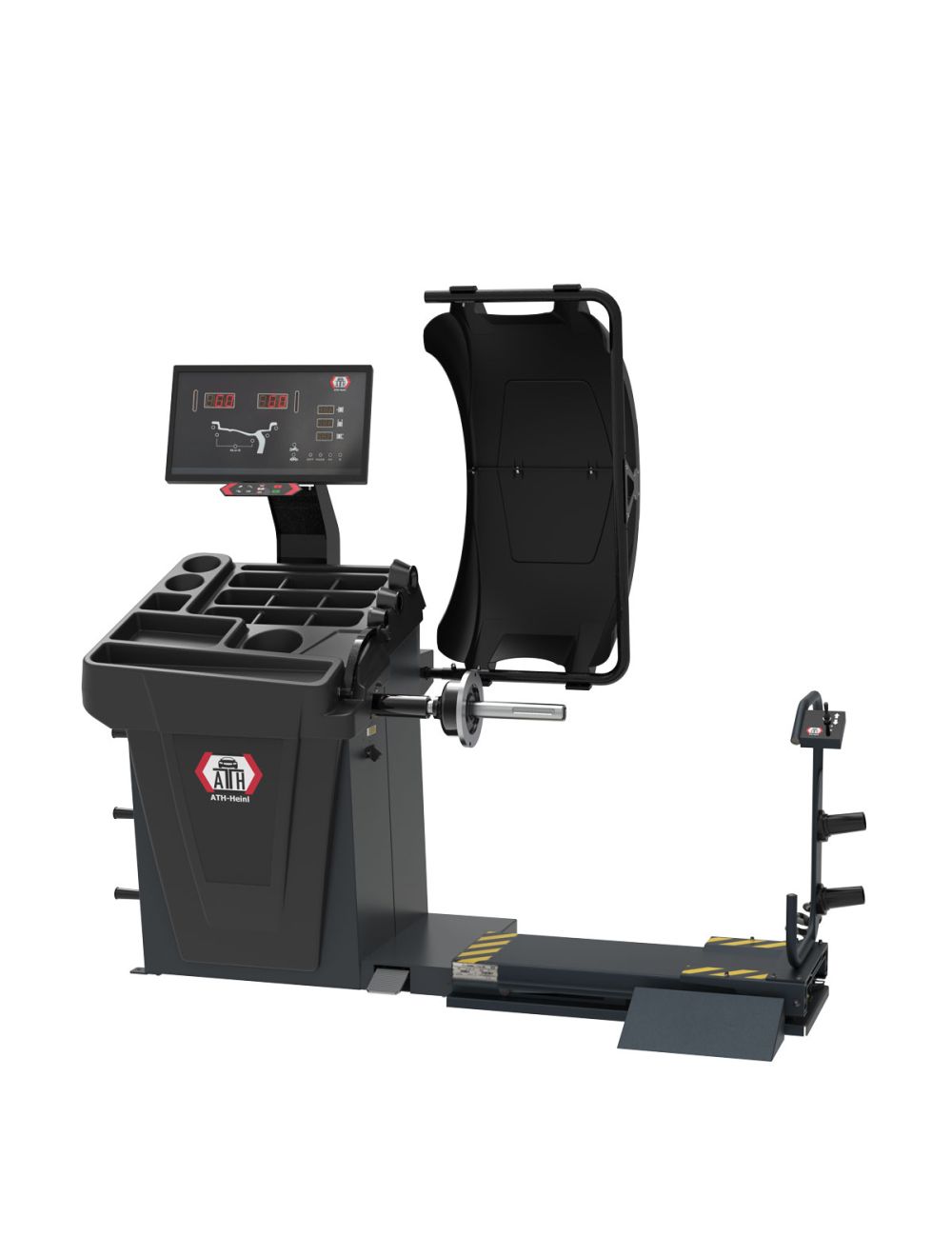

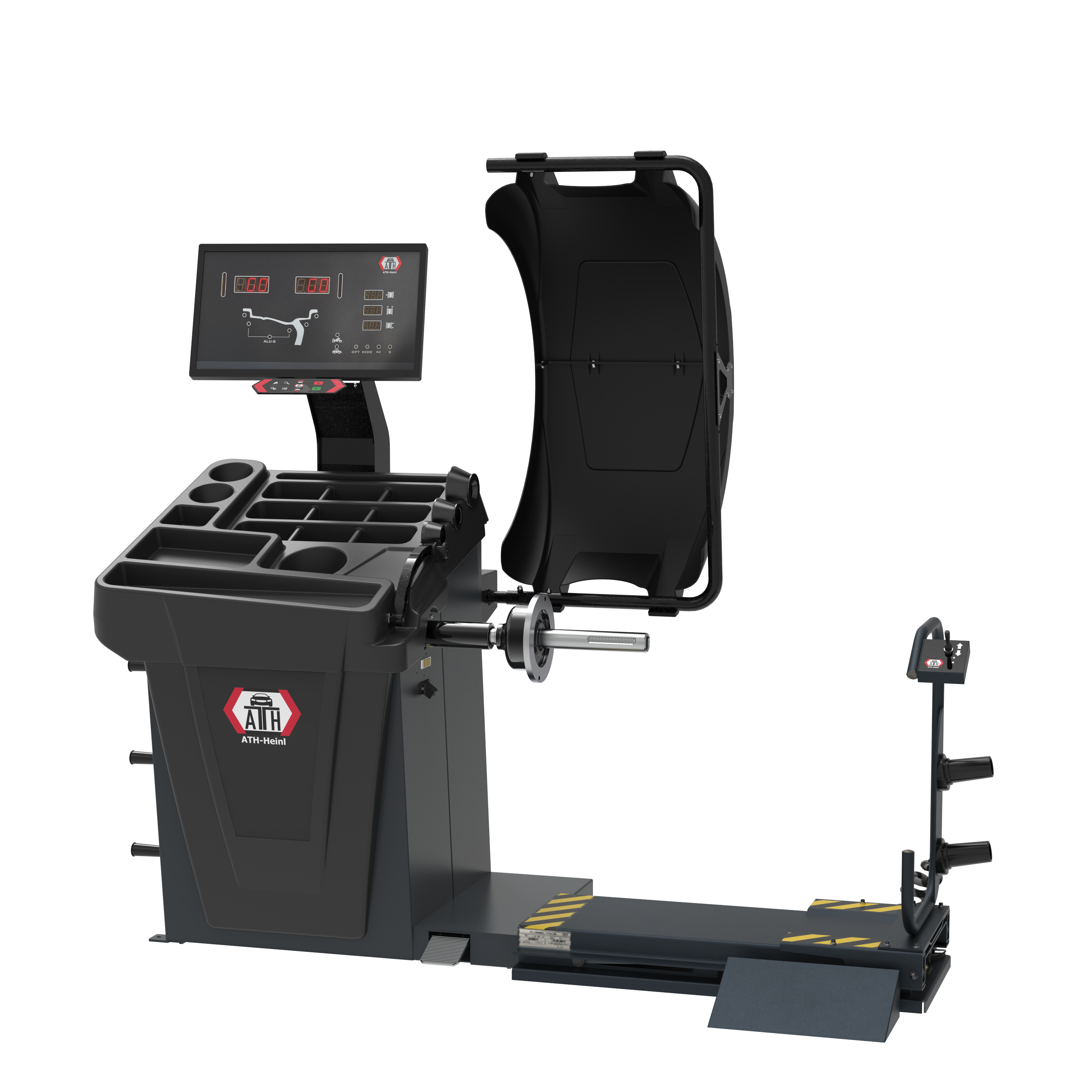

ATH W®44 P Plus delivers accurate passenger car wheel balancing for professional workshops. The pneumatic 40 mm clamping shaft secures the wheel, while sonar technology measures rim width contact‑free. Automatic positioning guides the wheel for fast and precise weight application, and a laser indicates the exact placement point at the 5 o’clock position. Includes a clear LED display, wheel lifter, Speedplate Kit 5 and a large hood.
4 533,61 €
plus bez podatków, transportu
5 440,33 €
Pneumatic shaft: 40 mm clamping shaft for quick and secure wheel clamping
Sonar technology: Non-contact rim width detection
Automatic positioning: Automatically positions the wheel for weight attachment
Extended clamping shaft: Additional clamping shaft for use with other clamping devices
Laser indicator: Enables precise placement of the clamping weights at the 6 o'clock position
Static/Dynamic program: Enables optimal balancing at different speeds
Alu balancing programs: Special programs for aluminum rims to improve balancing quality
Split rear spoke weight positioning: Enables precise weight distribution behind the spokes
Optimization program: Program for fine-tuning and optimizing the balancing process
Optional motorcycle function: Additional function for balancing motorcycle wheels
Including wheel lifter: ATH RRH1107
Including 5-finger speedplate kit
Including large clamping hood for aluminum rims
Scope of delivery:
- Rim gauge
- Weight pliers
- 100g stop weight
- Allen key
- Mounting tool for balancing shaft
- 4 cones 45 - 135 mm
- Quick-release nut
- Clamping cap
- Balancing shaft
More Information
Średnica otworu środkowego felgi
45 – 130 mm
Czas pomiaru car | truck
8 s
Tolerancja pomiaru
+/- 1g
Prędkość obrotów koła
200 U/min
Szerokość felgi
1,5" - 20"
Średnica felgi
10“ – 24“
Max. średnica koła
900 mm
Max. waga koła
65 kg
Dopływ sprężonego powietrza
8 bar
Monitor
22“ LED
Moc napędowa
0,20 kW
Napięcie pracy
230V / C16A
pobierz ulotkę produktu
